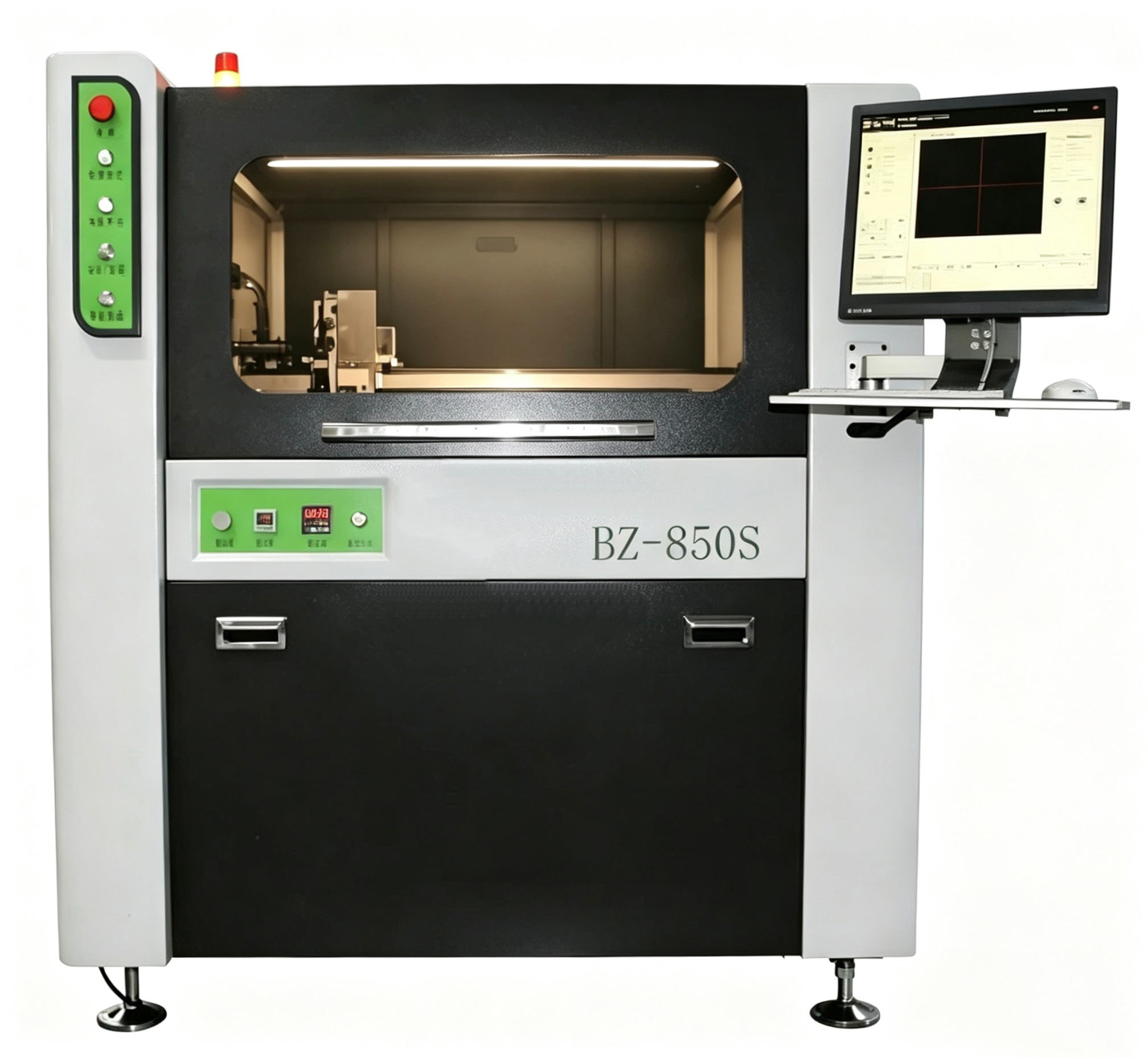

HCT BZ-850S High Speed Glue Spraying Machine

High-Speed Precision Glue Dispenser and Smt Glue Dispenser Machine

A high-speed precision glue dispenser is a specialized machine used in various industries, including electronics manufacturing, automotive, aerospace, and medical devices, to accurately and efficiently dispense adhesive or glue onto various components or surfaces. Here's some information about a high-speed precision glue dispenser:

Function and Purpose:

• Adhesive application: The primary function of a high-speed precision glue dispenser is to dispense precise amounts of adhesive or glue onto specific areas of components or surfaces.
• Automation and speed: These machines are designed to automate the adhesive dispensing process, allowing for faster production rates and improved efficiency.
• Precision and accuracy: The dispenser is capable of applying adhesive with high precision and accuracy, ensuring consistent results and reducing waste.

Features of a High-Speed Precision Glue Dispenser:

• Dispensing mechanism: The dispenser typically utilizes a motorized syringe or piston-based system that controls the flow and volume of adhesive being dispensed.
• Adjustable parameters: It allows for adjusting various parameters such as dispensing speed, pressure, volume, and pattern to accommodate different requirements and applications.
• Nozzle options: Different nozzle sizes and shapes are available to control the bead width and shape of the dispensed adhesive.
• Control system: The dispenser is equipped with a user-friendly control interface that allows for easy programming, calibration, and adjustment of dispensing parameters.

Advantages of using a High-Speed Precision Glue Dispenser:

• Increased productivity: High-speed dispensing capability enables faster production rates, reducing cycle times and increasing overall output.
• Accuracy and consistency: Precise control over dispensing parameters ensures consistent and uniform adhesive application, minimizing variations and defects.
• Waste reduction: Accurate dispensing reduces adhesive waste, leading to cost savings and improved sustainability.
• Versatility: These machines can handle various types of adhesives, including epoxy, UV-curable, silicone, or hot melt glues, making them suitable for a wide range of applications.

Considerations when using a High-Speed Precision Glue Dispenser:

• Adhesive compatibility: Verify that the dispenser is compatible with the specific type of adhesive being used, including viscosity, curing requirements, and material compatibility.
• Component or surface preparation: Proper cleaning and preparation of the components or surfaces to be glued are essential to ensure optimal adhesion.
• Maintenance and cleaning: Regular maintenance and cleaning of the dispenser system, including nozzles and dispense tips, are necessary to prevent clogs and maintain consistent dispensing performance.

An SMT (Surface Mount Technology) glue dispenser machine is a specialized equipment used in electronics manufacturing to automate the dispensing of adhesive or glue onto printed circuit boards (PCBs) during the assembly process. Here's some information about an SMT glue dispenser machine:

Function and Purpose:

• Adhesive application: The primary function of an SMT glue dispenser machine is to accurately and efficiently dispense adhesive or glue onto specific locations on the PCBs.
• Automation and precision: These machines are designed to automate the adhesive dispensing process, ensuring precise and consistent application across multiple PCBs.
• Fast and controlled dispensing: The machine allows for high-speed dispensing without compromising accuracy, increasing production rates and efficiency.

Features of an SMT Glue Dispenser Machine:

• Dispensing mechanism: The glue dispenser machine uses a motorized syringe or piston-based system to control the flow and volume of adhesive being dispensed onto the PCBs.
• Adjustable parameters: It offers adjustable parameters such as dispensing speed, pressure, volume, and pattern to accommodate different adhesive types, component sizes, and PCB requirements.
• Nozzle options: Different nozzle sizes and shapes are available to control the bead width, shape, and deposition pattern of the dispensed adhesive.
• Control system: The machine is equipped with a user-friendly control interface that allows for easy programming, calibration, and adjustment of dispensing parameters.

Advantages of using an SMT Glue Dispenser Machine:

• Accuracy and consistency: The machine ensures precise and consistent adhesive application, reducing variations and defects during the assembly process.
• Increased productivity: Automated dispensing enables faster production rates, reducing cycle times and increasing overall output.
• Waste reduction: Accurate dispensing minimizes adhesive waste, leading to cost savings and improved sustainability.
• Versatility: SMT glue dispenser machines can handle various types of adhesives, including epoxy, UV-curable, silicone, or hot melt glues, making them suitable for a wide range of PCB assembly applications.

Considerations when using an SMT Glue Dispenser Machine:

• Adhesive compatibility: Verify that the machine is compatible with the specific type of adhesive being used, including viscosity, curing requirements, and material compatibility.
• PCB design and component placement: Proper consideration should be given to PCB design and component placement to ensure optimal adhesive application coverage and accessibility.
• Maintenance and cleaning: Regular maintenance and cleaning of the dispenser system, including nozzles and dispense tips, are necessary to prevent clogs and maintain consistent dispensing performance.

Glue dispensers, we also call coating machines, glue potting machines, and so on. It is a flow-controlling system. The automatic glue dispensing machine dispenses or coats the glue on the surface or internal of the products which can be a 3D/4D track. The functions including accurately positioning, precision glue controlling, no drawing, leakage, and so on. Glue dispense main widely use for dot, line, arc, and circle tracks to accurately dispense glue, oil paint, or other liquid to each product.

High speed glue dispensers can connect with the peripheral equipment of SMT, save the manual release process, and improve the adhesive capacity. At the same time, the model is equipped with Mark point automatic positioning function, which can be automatically corrected when point offset parts are biased, to ensure that the point glue position is more accurate and improve the quality of the product comprehensively.

Product Features - Smt Glue Dispenser Machine

• Glue spray speed industry-leading, 45000 points/H;
• CCD visual positioning system. Sweep MAKE point line work, can effectively solve the plate position problem;
• Full series of imported servo motor + ball screw drive, accurate position;
• Using trigger flight dispensing technology;
• Computer control, Windows operating system, fault acousto-optic alarm, and menu display;
• High-speed non-contact dispensing;
• Automatic thermostatic system of the valve body to ensure the same effect of dispensing molding;
• Optional type of glue valve, optional laser altimetry.

Application Range

The bottom filling, FPC package, SMT point red glue, LED packaging, component packaging, point tin paste, dot red glue, dot black glue, semiconductor packaging, wafer fixation, etc.

Independent research and development of precision dispensing with the surface coating system, widely used in SMT and PCB assembly, semiconductor packaging, LED packaging mechanical and electrical assembly, flat panel display assembly, etc., can also replace new energy applications and life science, military products of dispensing with coating, precision dispensing, filling and coating is the preferred partner.

Smt Glue Dispenser Machine Manufacturer - HCT

HCT (Shenzhen HanChengTong Technology Co., Ltd ) is a well-known manufacturer of SMT (Surface Mount Technology) glue dispenser machines. They specialize in providing high-quality equipment for the electronics assembly industry.

HCT's SMT glue dispenser machines are designed to meet the demanding requirements of precision adhesive dispensing in surface mount technology applications. Their machines offer advanced features and capabilities to ensure accurate and efficient glue application on PCBs and other electronic components.

Some notable features and advantages of HCT's SMT glue dispenser machines include:

High-precision dispensing: HCT machines provide precise control over the amount, location, and pattern of glue dispensed. This ensures consistent and uniform adhesive application, resulting in reliable and high-quality solder joints.

Customizable settings: HCT's machines offer programmable options to adjust dispensing parameters such as flow rate, dispensing speed, and dispensing patterns. This flexibility allows users to tailor the adhesive application process according to their specific requirements.

Multiple dispensing methods: The machines support various dispensing methods, including dot dispensing, line dispensing, or even more complex patterns. Interchangeable nozzles and valves enable the dispensing of different viscosities and types of adhesives.

User-friendly interface: HCT focuses on providing user-friendly interfaces that allow operators to easily set up and control the dispensing process. Clear visual feedback and intuitive controls enhance usability and reduce the learning curve.

Reliable construction and durability: HCT's machines are built with high-quality materials and components, ensuring long-lasting performance and minimal downtime due to maintenance or repairs.

Excellent technical support: HCT offers comprehensive technical support and customer service to assist users with installation, training, troubleshooting, and any other machine-related queries or issues.

As an established manufacturer in the industry, HCT has gained a reputation for providing reliable and efficient SMT glue dispenser machines. Their focus on precision, flexibility, and user-friendliness makes their products suitable for a wide range of electronics manufacturing applications.

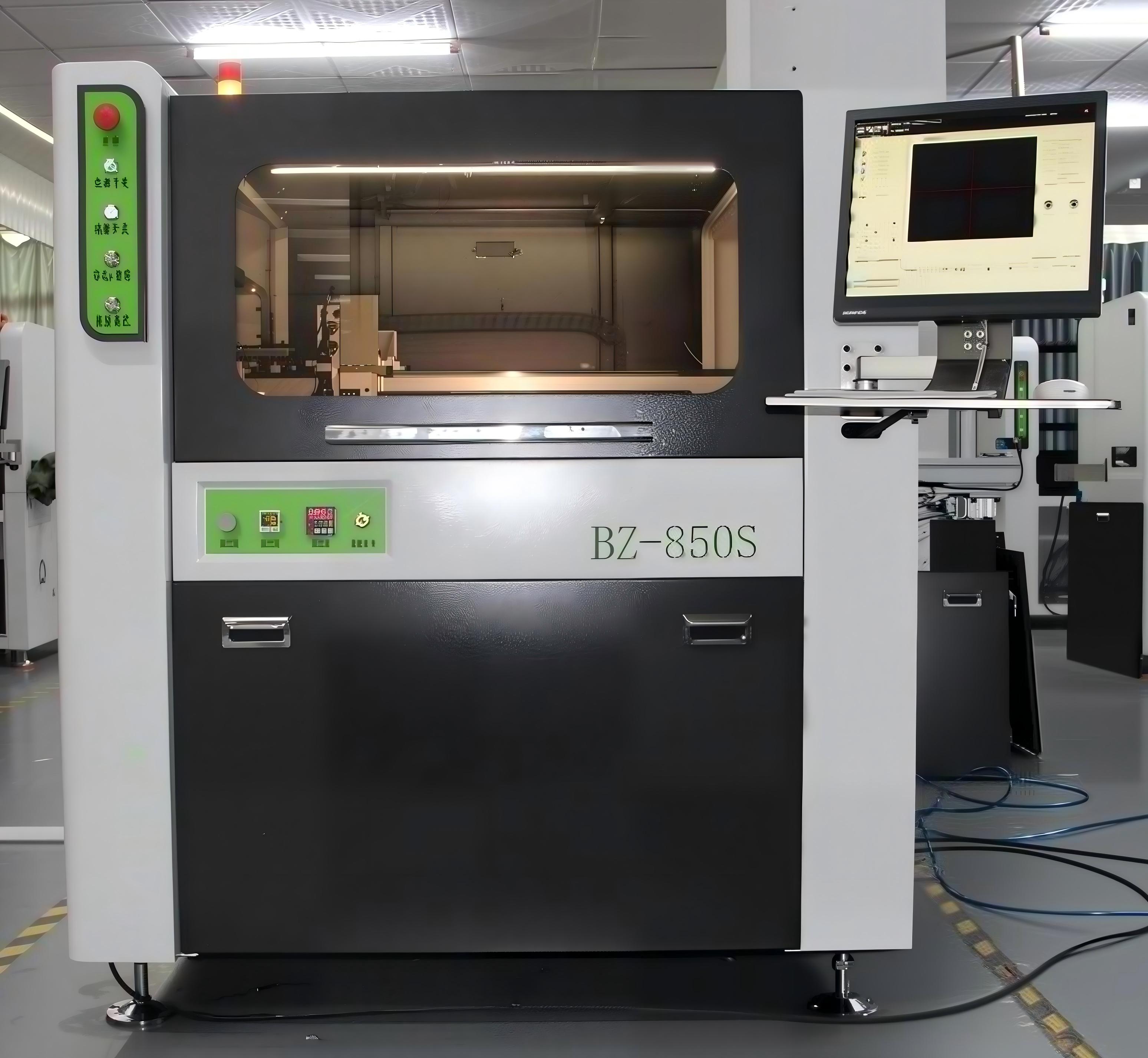

Product Display - Smt Glue Dispenser Machine
