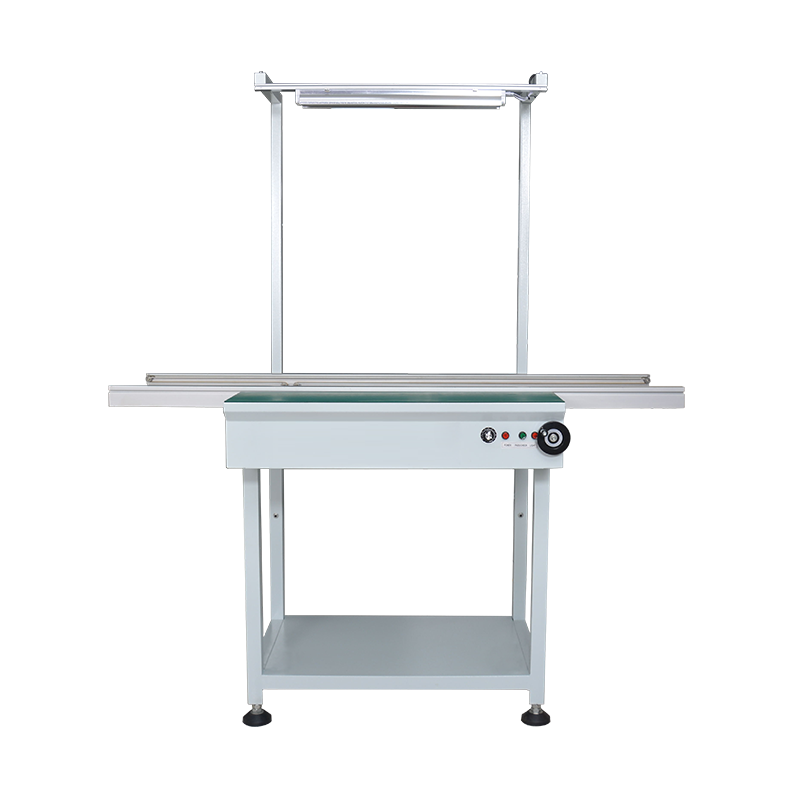

HCT-CON-500/600/1200 SMT Linkage Conveyor

SMT General Buffer Conveyor

An SMT (Surface Mount Technology) general buffer conveyor is a type of equipment used in electronics manufacturing to provide temporary storage and buffering for PCBs (Printed Circuit Boards) between different stages of the assembly process. Here's some information about SMT general buffer conveyors:

Function and Purpose:

• Buffering PCBs: The primary function of a general buffer conveyor is to provide a temporary storage area for PCBs, allowing smooth and continuous flow between different stages of the SMT assembly line.
• Space optimization: By creating a buffer zone, these conveyors help balance the production rate between different machines, preventing bottlenecks and ensuring efficient utilization of resources.
• Production flexibility: Buffer conveyors enable the decoupling of processes, allowing machines to operate independently without being constrained by the upstream or downstream stages.

Features of SMT general buffer conveyors:

• Conveyor system: These machines consist of a series of motorized belts or rollers that move the PCBs along the length of the conveyor.
• Adjustable parameters: Speed, width, and other parameters can usually be adjusted to accommodate various PCB sizes and production requirements.
• Multiple lanes: Some models offer multiple parallel lanes, allowing simultaneous buffering of multiple PCBs or different product types.
• FIFO (First In, First Out): Most buffer conveyors utilize a FIFO principle, ensuring that the PCBs are released in the same order they were received, maintaining the sequence of production.
• ESD protection: SMT general buffer conveyors often incorporate anti-static measures to protect sensitive electronic components from electrostatic discharge.

Advantages of using SMT general buffer conveyors:

• Continuous production flow: Buffering eliminates downtime caused by machine stoppages, helping maintain a constant flow of PCBs through the assembly line.
• Flexibility and scalability: Buffer conveyors provide flexibility to handle varying production rates and allow for future expansion of the assembly line.
• Reduced bottlenecks: They help balance production rates between different machines, preventing congestion or delays in the assembly process.
• Improved efficiency: Buffering reduces the need for manual intervention, optimizing the workflow and maximizing equipment utilization.

Considerations when using SMT general buffer conveyors:

• PCB size compatibility: Ensure that the conveyor width and length can accommodate the size of the PCBs being processed.
• System synchronization: Proper integration and coordination with upstream and downstream machines are crucial to maintain a smooth flow of PCBs.
• Maintenance and cleaning: Regular maintenance and cleaning of the conveyor system are necessary to ensure optimal performance and prevent contamination.

SMT general buffer conveyors play a vital role in optimizing productivity and maintaining a consistent flow of PCBs in electronics manu

ufacturing. They contribute to efficient assembly line operations and improved overall equipment effectiveness (OEE).

TECHNICAL PARAMETER - Automatic SMT General Buffer Conveyor

Model. No.	W-350A/W-350AX
Power Supply	AC 220V, 50/60 HZ
Adjustable Speed	0-8000mm/min
Direction	L to R (Or R to L)
Width Adjustment	Single rail:50~350mm Dual rail: 50~300MM
Transport High	900±20mm
Conveyor Length	500MM~1500MM Available

​

PRODUCT SPECIFICATION - Automatic SMT General Buffer Conveyor

• The steel frame structure and the surface are sprayed with computer toner (electrostatic spraying).
• 33 × 55mm special aluminum.
• With 1 light sensor (CDD) at the entrance and exit.
• With 1 step motor speed controller.
• With manual / automatic two functions.
• 1.0mm flat belt conveyor.
• Anti-static workbench.
• Dedicated industrial control board controller control.
• Can communicate with front and rear equipment.
