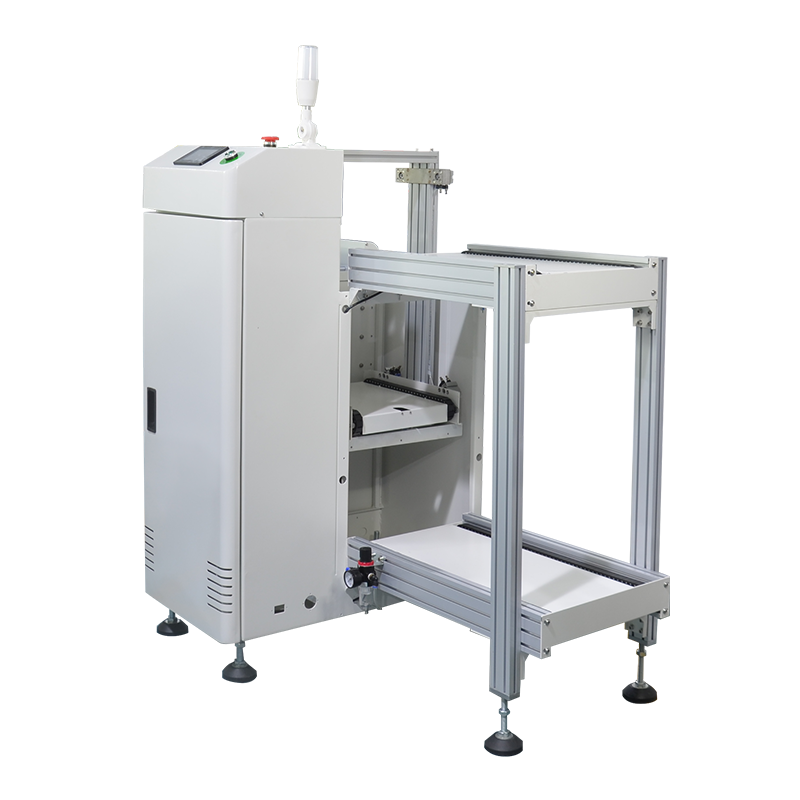

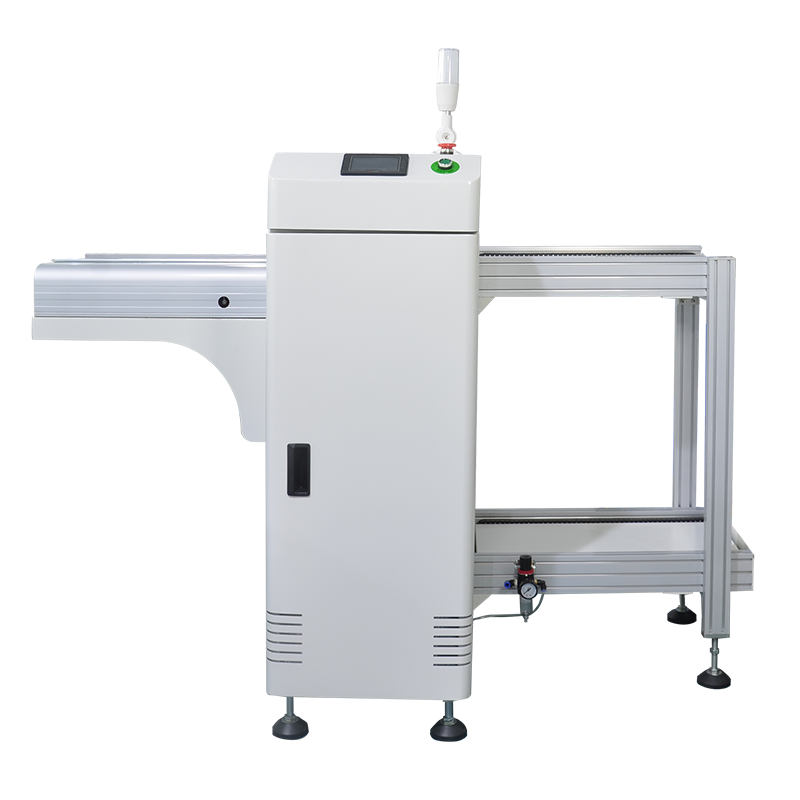

SMT Automatic PCB Unloader machine

Automation Led SMT Pcb Unloader

Automation-led SMT PCB unloader refers to a machine used in electronics manufacturing that automates the unloading and handling of printed circuit boards (PCBs) from the surface mount technology (SMT) assembly line. This type of equipment utilizes automation to improve efficiency and streamline the production process. Here's some information about an automation-led SMT PCB unloader:

Function and Purpose:

PCB unloading: The primary function of an automation-led SMT PCB unloader is to automatically remove PCBs from the SMT assembly line after the completion of various processes.

Conveyor system integration: These machines are typically integrated with the SMT assembly line, receiving PCBs directly from the conveyor belt or other equipment for unloading.

Component protection: The unloader ensures careful handling of PCBs to prevent damage to the assembled components or the PCB itself during the unloading process.

Features of an Automation-led SMT PCB Unloader:

Conveyor system: The unloader consists of a motorized conveyor system with adjustable width and length, designed to receive PCBs from the SMT assembly line.

PCB separation: Some models feature mechanisms to separate individual PCBs from panels or chains, allowing for single PCB unloading.

Buffering and stacking functionality: The unloader may include a buffer area or stacking mechanism where unloaded PCBs can be temporarily stored before further processing or packaging.

Control system: It is equipped with a user-friendly control interface that allows for adjustments to accommodate different PCB sizes, production rates, and unloading requirements.

Advantages of using an Automation-led SMT PCB Unloader:

Efficiency and productivity: By automating the unloading process, these machines eliminate the need for manual labor, reducing production time and increasing overall efficiency.

Component protection: Automated handling minimizes the risk of component damage during the unloading process, ensuring the integrity of the assembled PCBs.

Continuous operation: An automation-led unloader allows for uninterrupted operation of the SMT assembly line while eliminating potential bottlenecks caused by manual unloading.

Improved safety: Automation reduces the risk of operator injuries associated with manual handling of hot PCBs or exposure to potential hazards in the production environment.

Considerations when using an Automation-led SMT PCB Unloader:

Integration compatibility: Ensure that the unloader is compatible and properly integrated with the specific equipment and conveyor system used in the SMT assembly line.

PCB size compatibility: Verify that the unloader can accommodate a range of PCB sizes, taking into account width, length, and weight capacity.

Maintenance and cleaning: Regular maintenance and cleaning of the unloader are necessary to ensure optimal performance, prevent contamination, and maintain the machine's efficiency over time.

Automation-led SMT PCB unloader offers significant advantages in terms of efficiency, component protection, and operator safety. By automating the unloading process, these machines contribute to a streamlined and productive assembly line, ensuring a smooth flow of production.

Technical Parameters - SMT Automatic PCB Unloader machine

​

The PCB unloader machine has a stable design of the casting lifting table structure, which improves the stability of the equipment. The control system with independent intellectual property rights, multi-functional electrical circuits and programming, and stable performance ensures the smoothness of the production line. Standard SMEMA communication interface can communicate with other automation equipment. SMT loader machine plays a very important role in the SMT assembly line.

The SMT unloader machine is used as the board-loading device for producing circuit boards. It can be used with the standard material box to automatically send the circuit boards stored in the material box to the production line one by one. The pick and place feeder can be used for various circuit boards of different sizes and has wide applicability and high productivity.

SMT UNLOADER MACHINE ADVANTAGES - SMT Automatic PCB Unloader machine

In the automated SMT production line, the PCB unloader machines are indispensable machines. There are many advantages of unloader machines:

1. SMT unloader machine is recycled and durable which can save time.

2. People-saving: semi-automatic printer machine is filled with the whole frame board, this employee can do other types of work at any time, or one person can print multiple production lines at the same time. For semi-automatic printer machines, only one person needs to take care of multiple production lines. Because it is a cyclic storage board, it can be added at any time without changing the frame again.

3. The size of the PCB unloader machine is small, saving working space.

4. Strong practicality: Automatic SMT PCB unloader can use with a semi-automatic printer machine, or full-automatic printer machine, regardless of the single or double panel. When there is no panel, the automatic alarm function will sound.

5. High reliability: Due to the small amount of movement, less wear, and all metal materials, the PCB loading machine owns extremely high reliability.

6. Improve efficiency: When the pick and place machine has a signal and needs PCB, the loading machine will supply the board on time, and the automatic alarm function will not cause the pick and place machine to run idle.

Advantages and Prospects of China Automatic LED SMT PCB Unloader

China's automatic LED SMT (Surface Mount Technology) PCB unloader systems offer several advantages and have promising prospects in the electronics manufacturing industry. Here are some key advantages and prospects of China's automatic LED SMT PCB unloader systems:

Efficiency and Productivity: Automatic LED SMT PCB unloader systems in China are designed to enhance production efficiency by automating the process of unloading PCBs from the assembly line. These systems can handle large volumes of PCBs quickly and accurately, resulting in improved productivity and reduced labor costs.

Precision and Reliability: Chinese manufacturers prioritize precision and reliability in their automatic LED SMT PCB unloader systems. These systems are equipped with advanced mechanisms, such as adjustable width, alignment features, and gentle handling to ensure that PCBs are safely and accurately unloaded without causing any damage or misalignment.

Versatility and Customization: China's automatic LED SMT PCB unloader systems are versatile and can adapt to various PCB sizes, thicknesses, and types. Manufacturers often offer customization options to meet specific requirements, allowing for seamless integration into different assembly lines and production processes.

Quality Control and Inspection: Many Chinese automatic LED SMT PCB unloader systems incorporate quality control and inspection features. Vision systems and sensors are often integrated to verify the position, orientation, and quality of the unloaded PCBs, ensuring consistent and reliable performance.

Integration and Connectivity: Chinese manufacturers understand the importance of seamless integration and connectivity within an assembly line. Automatic LED SMT PCB unloader systems are typically designed to interface with other equipment and software, enabling smooth communication and data exchange, optimizing workflow, and improving overall efficiency.

Prospects:

The prospects for China's automatic LED SMT PCB unloader systems are promising due to several factors:

Growth of LED Industry: The LED industry has been witnessing significant growth globally. China is one of the leading producers of LED lighting products, and the demand for automatic LED SMT PCB unloader systems is expected to rise as manufacturers strive to meet the increasing production requirements.

Technological Advancements: Chinese manufacturers continue to invest in research and development, focusing on technological advancements to improve the performance and capabilities of automatic LED SMT PCB unloader systems. This continuous innovation ensures that these systems remain competitive in the market.

Global Market Presence: Chinese manufacturers have established a strong presence in the global electronics manufacturing market. With their reputation for cost-effectiveness and quality, they have the potential to expand their reach and supply automatic LED SMT PCB unloader systems to manufacturers worldwide.

China's automatic LED SMT PCB unloader systems offer advantages such as efficiency, precision, versatility, and customization. With the growth of the LED industry and ongoing technological advancements, these systems have promising prospects in the electronics manufacturing sector.
