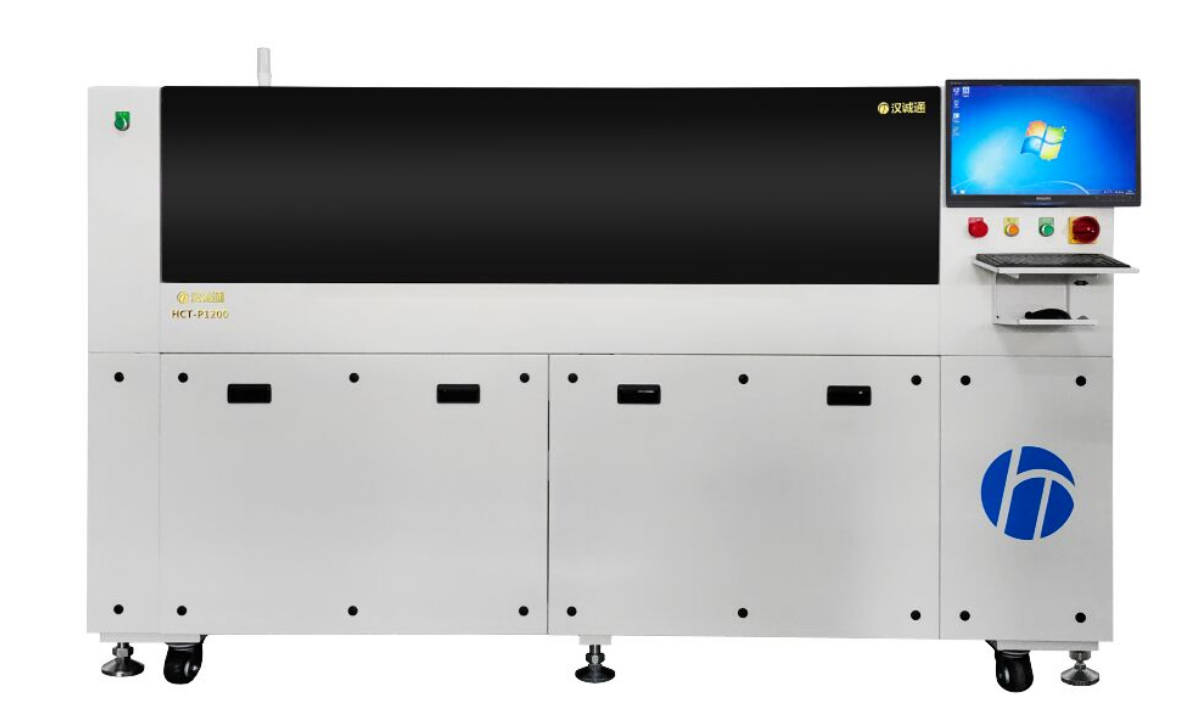

HCT-P1200 Automatic Solder Paste Printer
This automatic solder paste printing machine provides high-precision solder paste application for long-size PCB production. It supports maximum PCB size of 1200mm*320mm, with optional 1500mm*320mm specification, and adopts magnetic thimble plus equal high block to support thin and large boards steadily.
Belongs to category:
Automatic Solder Paste PrinterProduct Description
Advantages of using a solder paste stencil printer:
Precision: Stencil printers offer high accuracy and repeatability, ensuring consistent results.
Time-saving: They automate the solder paste application process, reducing manual labor and increasing productivity.
Cost-effective: By preventing excessive use of solder paste, these machines help minimize material waste.
Considerations when using a solder paste stencil printer:
Design compatibility: The stencil must be properly designed to match the PCB layout for accurate solder paste deposition.
Stencil cleaning: Stencils should be cleaned regularly to remove excess solder paste or contaminants that could affect future prints.
Maintenance: Regular maintenance and calibration of the printer are necessary to keep it in optimal working condition.
Solder paste stencil printers play a crucial role in the surface mount technology (SMT) assembly process, enabling precise and efficient solder paste deposition on PCBs.
Technical Parameters - High Accuracy Automatic Stencil Printer
PCB Processing Parameter | |
Max. Board Size(X x Y) | 1200mm*320mm (1500mm*320mm optional） |
Min. Board Size(X x Y) | 50mm * 50mm |
PCB Thickness Range | 0.4mm~6mm |
Camera mechanical range | 1500mm*350mm |
PCB Edge Clearance | 3mm |
Transport height | 900±40mm |
(Max)Transport speed | subdivision control ，1500mm/s(Max) |
Conveyor Direction | L-R, R-L, L-L, R-R |
Transfer Mode | One Stage Conveyor |
Support Method | Magnetic thimble |
Printing Parameters | |
Print Speed | 0～200mm/sec |
Stencil Frame Size | 737*300mm～1800*500mm |
Squeegee Material/Angle | Rubber/Steel Blade |
Print Mode | Single or dual squeegee printing |
Snap-off | 0～20mm |
Snap-Speed | 0～20mm/sec |
Print Pressure | 0.5kg - 10Kg |
Stencil frame positioning mode | Manually |
Cleaning Parameters | |
Cleaning System | Top drip |
Cleaning System Location | Right side cleaning |
Cleaning Method | Dry, wet and vacuum modes |
High speed cleaning | Back and forth cleaning |
Cleaning stroke | Automatically generated based on PCB length and width |
Cleaning Speed | 10～200mm/sec |
Cleaning fluid consumption | Auto&Manually adjustable |
Vision Parameters | |
CCD FOV | 12*9mm |
Camera type | 1.3 million pixels CCD Digital camera |
Camera System | Lock up/down optics structure, the light source can be infinitely adjusted |
Camera Cycle time | 300 ms |
Mark size | 0.5～6mm |
Mark number | Max:2pcs |
Stay away number | Max:1pcs |
Fiducial mark types | Standard Fiducial Mark Shape |
round、square、diamond、cross | |
Pad and profile | |
Machine Parameter | |
Power | AC220V±10%,50/60HZ,2.0KW |
Air Supply | Air tube￠10mm,4~6Kg/cm² |
Air Consumption | Approx. 5L/min |
Operating System (OS) | Windows 7 |
External Dimension | (L)2540mm * (W)1120mm *(H)1500mm (Without light,monitor and keyboard) |
Machine Weight | Appro.1350Kg |
Environment Request | Temperature - 24℃ ±10℃; Humidity 30% ~ 60% |
Equipment load bearing requirements | 650Kg/m |
Product Features - High Accuracy Automatic Stencil Printer
1. Machine Performance
It provides ±0.015mm repeat position accuracy and ±0.025mm print accuracy, with NCP-CT below 9 seconds, 6-minute program cycle time and 4-minute quick product changeover for efficient mass production.
2. PCB Processing Parameter
Compatible with PCBs ranging 50×50mm up to 1200×320mm (1500×320mm optional) and thickness of 0.4~6mm; it supports multi-direction transmission and adopts magnetic thimble plus equal high block to stabilize long boards during printing.
3. Printing Parameters
Equipped with fully adjustable printing speed, pressure and snap-off settings, supporting single/dual scraper modes with optional rubber or steel blades, and accommodates stencil frames from 737×300mm to 1800×500mm.
4. Cleaning Parameters
Integrated dry, wet and vacuum triple cleaning modes with top drip system; cleaning stroke, fluid and paper consumption can be automatically or manually adjusted to effectively maintain stencil cleanliness.
5. Vision Parameters
Featuring 1.3MP upper & lower CCD camera with infinitely adjustable light source and 300ms fast shooting cycle, the vision system supports multiple fiducial marks to achieve precise alignment of long-size circuit boards.
6. Machine Parameter
Running on 220V power supply with low air consumption, the machine suits standard electronic workshop environment; compact overall dimension and reasonable weight facilitate installation and layout for long-board SMT production lines.
Q&A
1.Q: What is an automatic solder paste printer?
A: It is core SMT equipment that automatically prints solder paste on PCB pads for component soldering.
2.Q: What is the function of an automatic stencil printer?
A: It accurately and evenly applies solder paste via stencil to ensure stable SMT assembly quality.
3.Q: Are you a factory or a trading company?
A: HCT is a professional SMT placement machine manufacturer integrating R&D, production, and sales.
