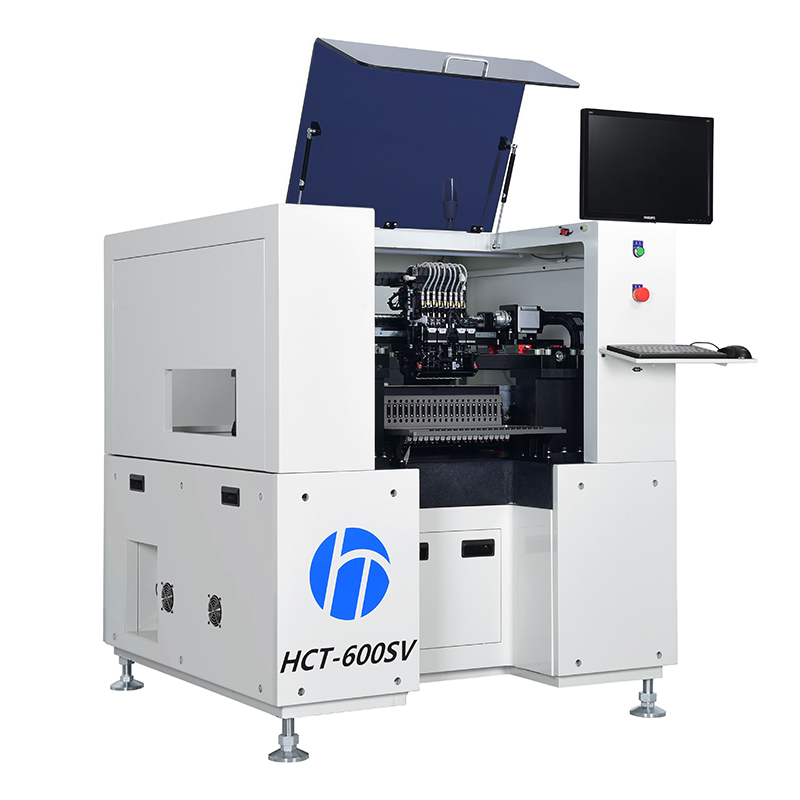

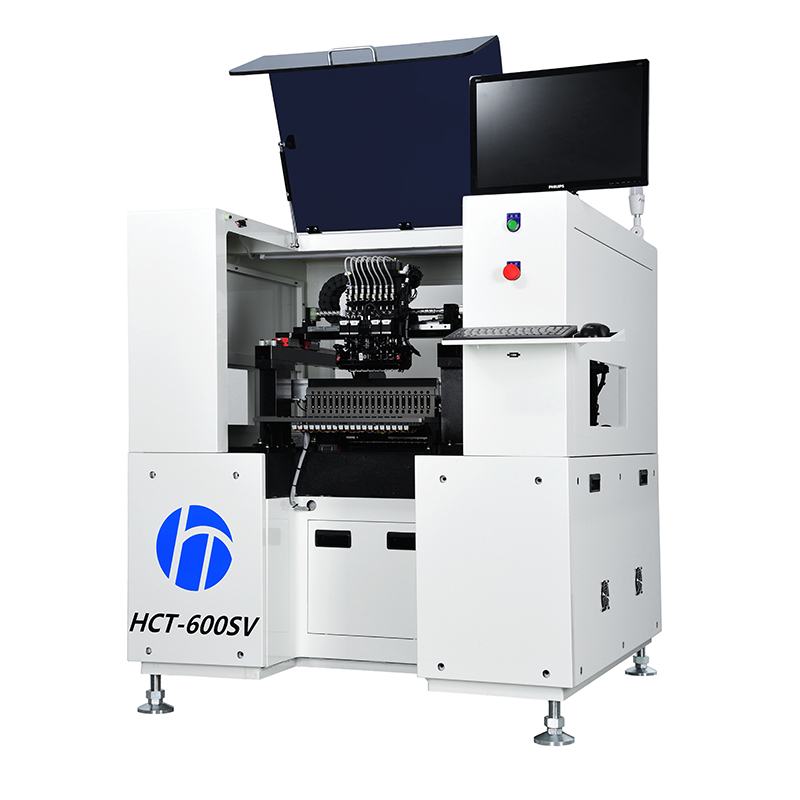

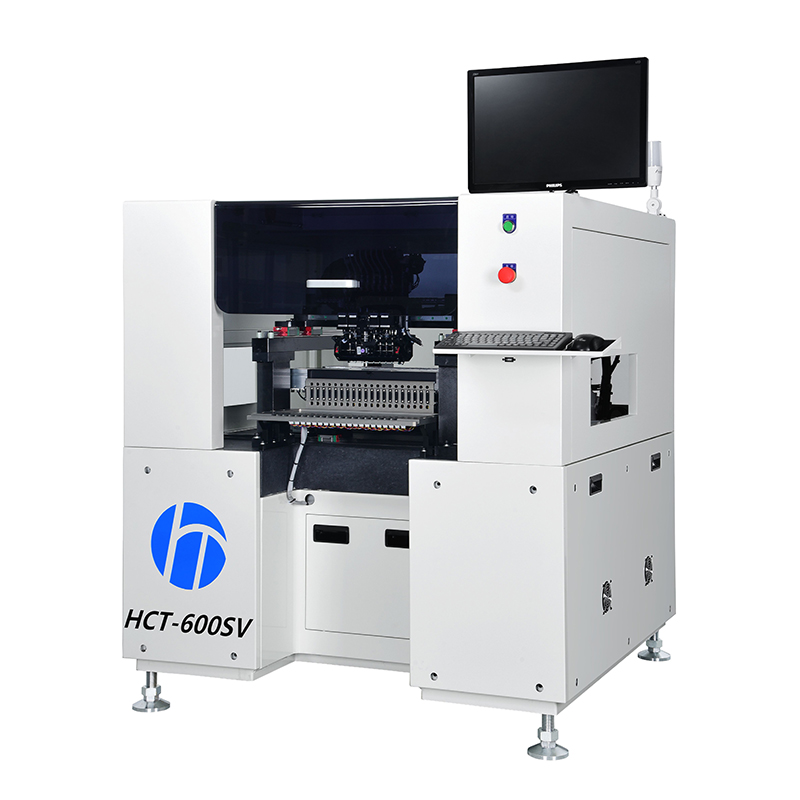

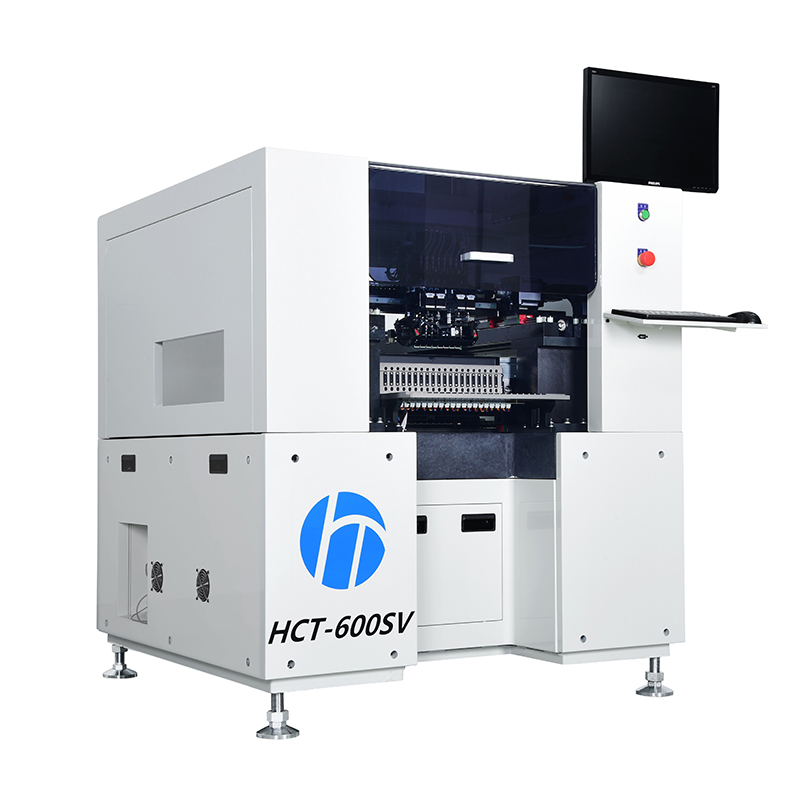

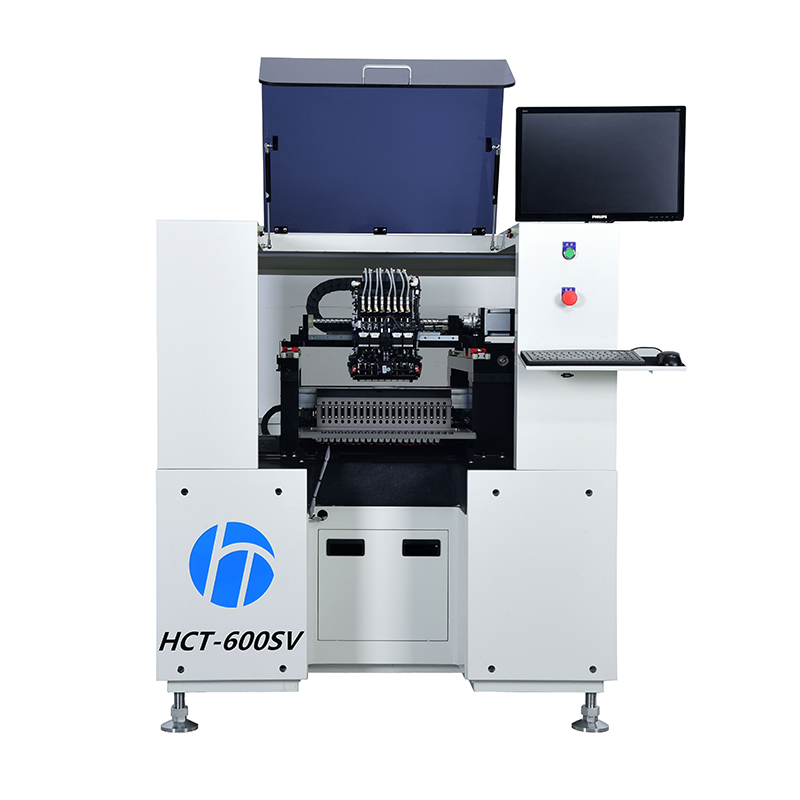

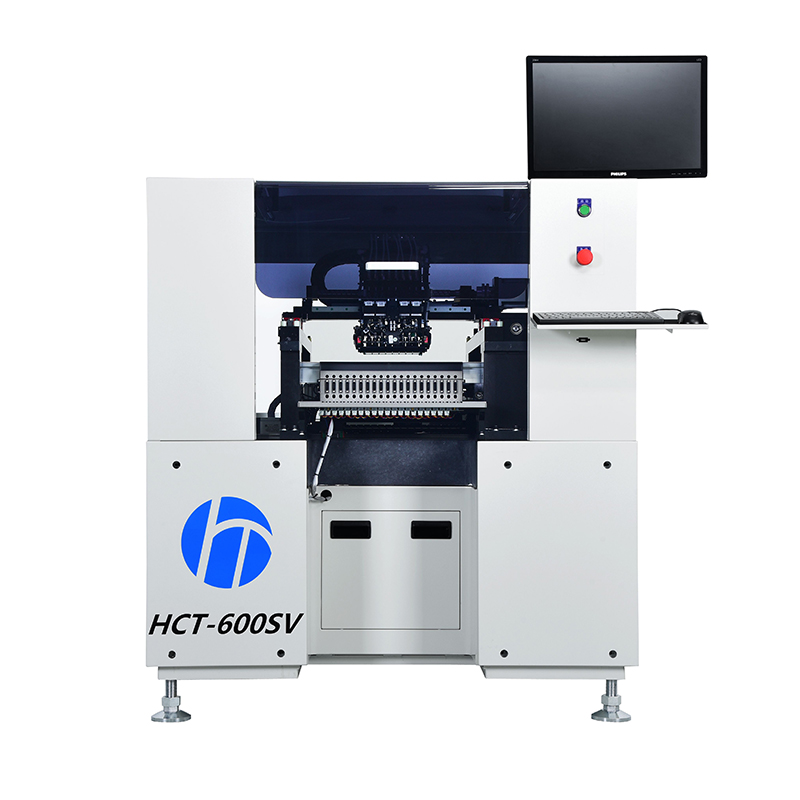

HCT-600SV Automatic 8 Heads LED Placement Machine
HCT-600SV — the compact inline placer built for LED production lines that never want to slow down. With 8 spindles and flying vision alignment, it places 40,000 chips per hour at ±0.05mm precision, while its built-in vacuum pump keeps operation clean and independent.
Belongs to category:
Automatic LED Pick and Place MachineProduct Description
Technical Parameters - Automatic Smt Led Placement Machine
Model | HCT-600SV | |
Alignment | Flying Vision Alignment System | |
Number of Spindles | 8 Spindles x 1 Gantry | |
Rated Placement Speed | Vision Alignment | LED 283540,000 CPH (Optimum) |
Placement Accuracy | ±0.05mm (Based on the standard chips) | |
Mechanical Precision | ±0.02mm | |
Component Range | Fly Camera | 0603(inch)~5050~7474(mm), high-power LED,IC<10mm |
Max Height | H=10mm (can handle max. 16mm without vision alignment) | |
Board Dimension(mm) | Minimum | 50(L) x 50(W) |
Maximum | 600(L) x 380(W) | |
PCB Thickness | 0.5 - 3.0 | |
Board Handling Method | Inline Conveyor | |
Tape Feeder | Feeder Type | Electric Feeder |
Feeder Capacity | 20 (12mm Standard) | |
Optional | 8mm, 12mm, 16mm, 24mm | |
Utility | Power | AC 220V/240V 50/60Hz, Single phase |
Max3.0KW | ||
Air Supply | Built-in Vacuum Pump | |
Mass | Approx.1250kg | |
External Dimension(mm) | 1,230(L) x1,200(D) x 1,360(H) | |
Product Features - Automatic Smt Led Placement Machine
1. High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.
2. High-speed: Maximum placement speed reaching 0.09s/chip.
With a SMEMA-compatible inline conveyor for line automation.
Each mounting head has its own Z - direction servo motor, which is designed for vertical motion
3. Places SMD components from 0603 to 7474, apply to LED chip, capacitors, resistors, IC, diode, odd-shape components etc.
4. Highest applicability of high speed chip mounters to LED DOB high components.
5. Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 600mm long in a single pass.
6. Excellent quality hardware support by using international famous brands ensure placement repeatability and precision.
7. Self-developed software simplifies production, easy operating and programming.
Excellent Quality Hardware Support
Ball Screws | KURODA / THK / NSK (Japan) |
Linear Guide | HIWIN (Taiwan) |
Servo Motors & Drivers | PANASONIC (Japan) / HCFA (China) |
Stepper Motors & Drivers | MOONS (China) |
Cables & Tank Chain | IGUS (Germany) |
Solenoid Value | CKD (Japan) / MAC (America) |
IPC | IndependentResearch & Development |
Attached 1: P&P Machine Standard Spare Parts List | ||
No. | Specifications | Qty |
1 | Standard Nozzle | 24 |
2 | Hexagon Wrench Tool | 1 |
3 | Material Rack | 1 |
Many products have begun to use LED equipment, such as LED displays, traffic lights, automotive lights, LED backlights, lighting sources, and so on. Therefore, when producing and mount LED products, we also need a placement machine for fast and fully automatic placement. Compared with other machines produced by the traditional SMT assembly line, our latest SMD LED pick and place machine can perfectly meet the precision requirements of LED products. More importantly, the requirements for speed and size are also high, so the installation speed must be fast when using the automatic LED bulb-making machine, and at the same time, the length of the printed circuit board on the placement machine is at least 1200 mm. We provide you cheap LED mounting machine with high speed and accuracy.
