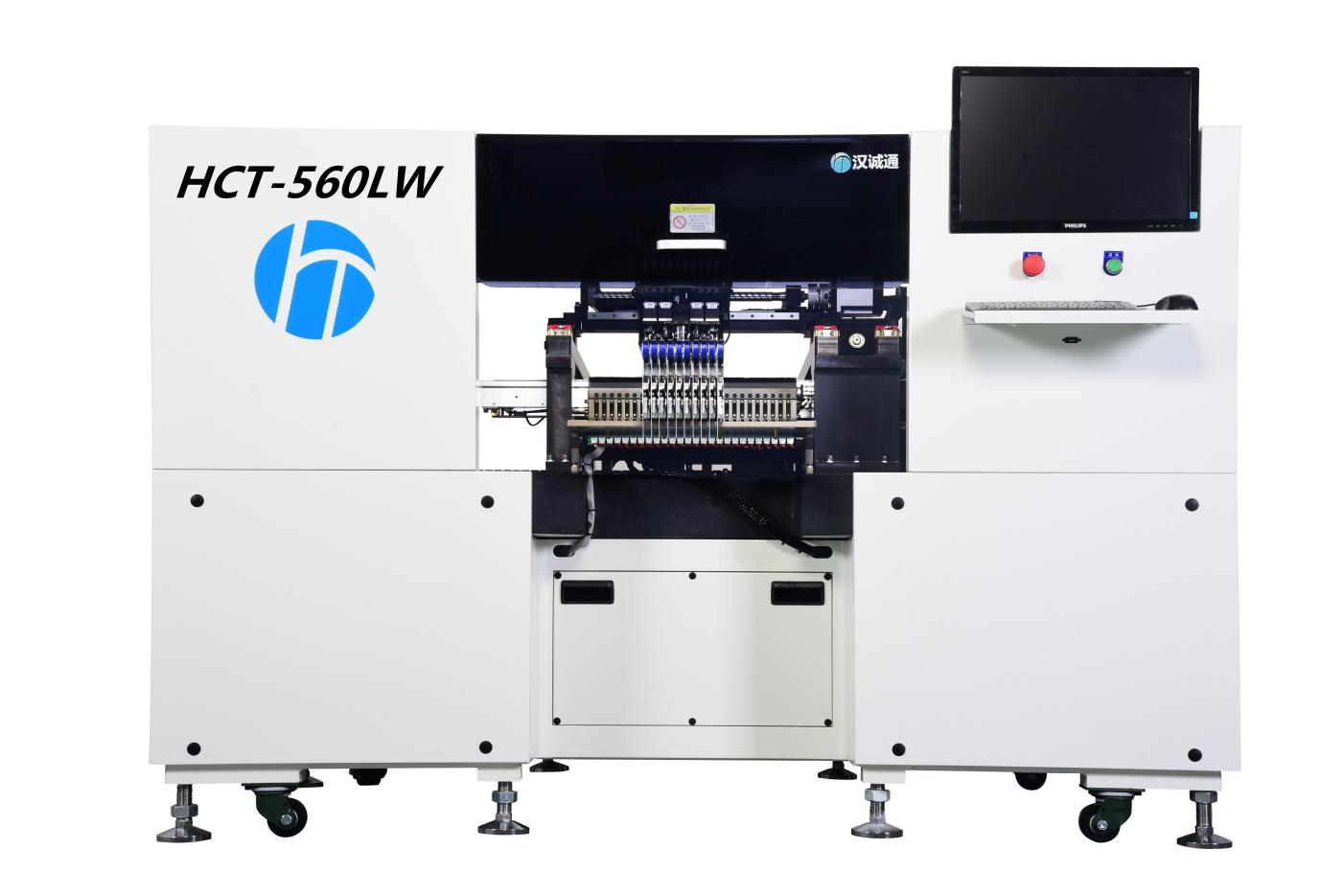

HCT- 560LW Automatic 12 Heads LED Pick and Place Machine
The HCT-560LW is a high-efficiency large-format SMT placement machine featuring advanced flying vision and MARK correction system. Equipped with 12 spindles and premium imported ball screw servo drive, it delivers outstanding speed and precision for large PCB and high-power LED mass production.
Belongs to category:
Automatic LED Pick and Place MachineProduct Description
P&P Machine Standard Spare Parts List:
No. Specifications Qty
1. Nozzles *36
2. Hexagon Wrench Tool *1
3. Material Rack *1
Product Features
- High-precision Vision Positioning: The machine adopts 6 flying vision cameras and 1 MARK camera with dual vision alignment and MARK correction, ensuring accurate and repeatable component placement with minimal errors.
- High-speed Placement Capability: Designed with optimized servo control system, it achieves a stable placement speed of 65000CPH, greatly improving production efficiency for large-scale SMT and LED processing.
- Large PCB Compatibility: Supporting a maximum PCB size of 1200mm×485mm and a minimum of 50mm×50mm, it adapts to ultra-wide board materials and meets diverse large-size product production needs.
- Flexible Component Mounting: It fully supports 0603 to 7474 components and various high-power LED elements, with standard mounting height ≤16mm and optional height ≤10mm for flexible production matching.
- Automatic Nozzle Switching: Built with two groups of automatic nozzle replacement stations, the machine realizes fast switching of different nozzles, reducing manual intervention and improving working continuity.
- Adjustable Moving Rail Structure: Equipped with moving rail and cylinder clamping mechanism with adjustable track width, it supports stable PCB fixing and bidirectional online transmission for flexible line layout.
- Dual Intelligent Programming Modes: It supports vision teach-in and coordinate file import programming, combined with mechanical and vision dual positioning, simplifying setup operation and shortening debugging time
Specification
|
Model |
HCT-560LW |
|
|
Alignment |
Flying Vision Alignment System |
|
|
（Bottom Fixed Cameras） |
||
|
Number of Spindles |
12 Spindles x 1 Gantry |
|
|
RatedPlacement Speed |
Vision Alignment |
65,000 CPH (Optimum) |
|
Placement Accuracy |
±0.05mm |
|
|
(Based on the standard chips) |
||
|
Mechanical Precision |
±0.02mm |
|
|
Component Range |
Fly Camera |
0603(inch)~5050~7474(mm)， |
|
high-power LEDs |
||
|
Max Height |
H≤16mm(Standard) |
|
|
Board Dimension(mm) |
Minimum |
50(L) x 50(W) |
|
Maximum |
1200(L) x485(W) |
|
|
PCB Thickness |
0.5 - 5.0 |
|
|
PCB Clamping |
Cylinder Clamping,track width adjustable |
|
|
Board Handling Method |
Moving Rail |
|
|
Tape Feeder |
Feeder Type |
Electric Feeder |
|
Feeder Capacity |
30 (12mm Standard) |
|
|
Optional |
8mm, 12mm, 16mm, 24mm, 32mm |
|
|
Utility |
Power |
AC 220V/240V 50Hz, Single phase |
|
Max3KW |
||
|
Air Supply |
0.4-0.6mpa(4-6kgf/cm)100L/min |
|
|
Vacuum Generator for Nozzles |
||
|
Mass |
Approx.1,500kg |
|
|
External Dimension(mm) |
2,050(L) x1,350(W) x 1,360(H) |
|
Product Advantages
1. Reliable Mounting Precision: Adopting dual vision correction and high-precision servo screw drive, the machine maintains stable ±0.05mm placement accuracy, effectively reducing defective rates and improving product consistency.
2. Large-size Production Capacity: With ultra-large 1200×485mm PCB processing range, it perfectly meets the production demand of long lamp boards and large LED panels, filling the gap of wide-format mounting.
3. High Production Efficiency: 12-spindle multi-head design and 65000CPH high-speed performance greatly improve output capacity, suitable for mass and continuous LED industrial production.
4. Stable Independent R&D System: All core control systems are independently developed by HCT, featuring stable operation, low failure rate and convenient after-sales maintenance and system upgrade.
5. Flexible & Humanized Operation: Equipped with automatic nozzle switching and dual programming modes, it simplifies machine operation. Bidirectional transmission and adjustable rails adapt to various production line layouts.
6. Durable Industrial Hardware: Imported ball screw and AC servo system ensure sensitive response and long-term stable precision, supporting long-hour uninterrupted industrial operation.
