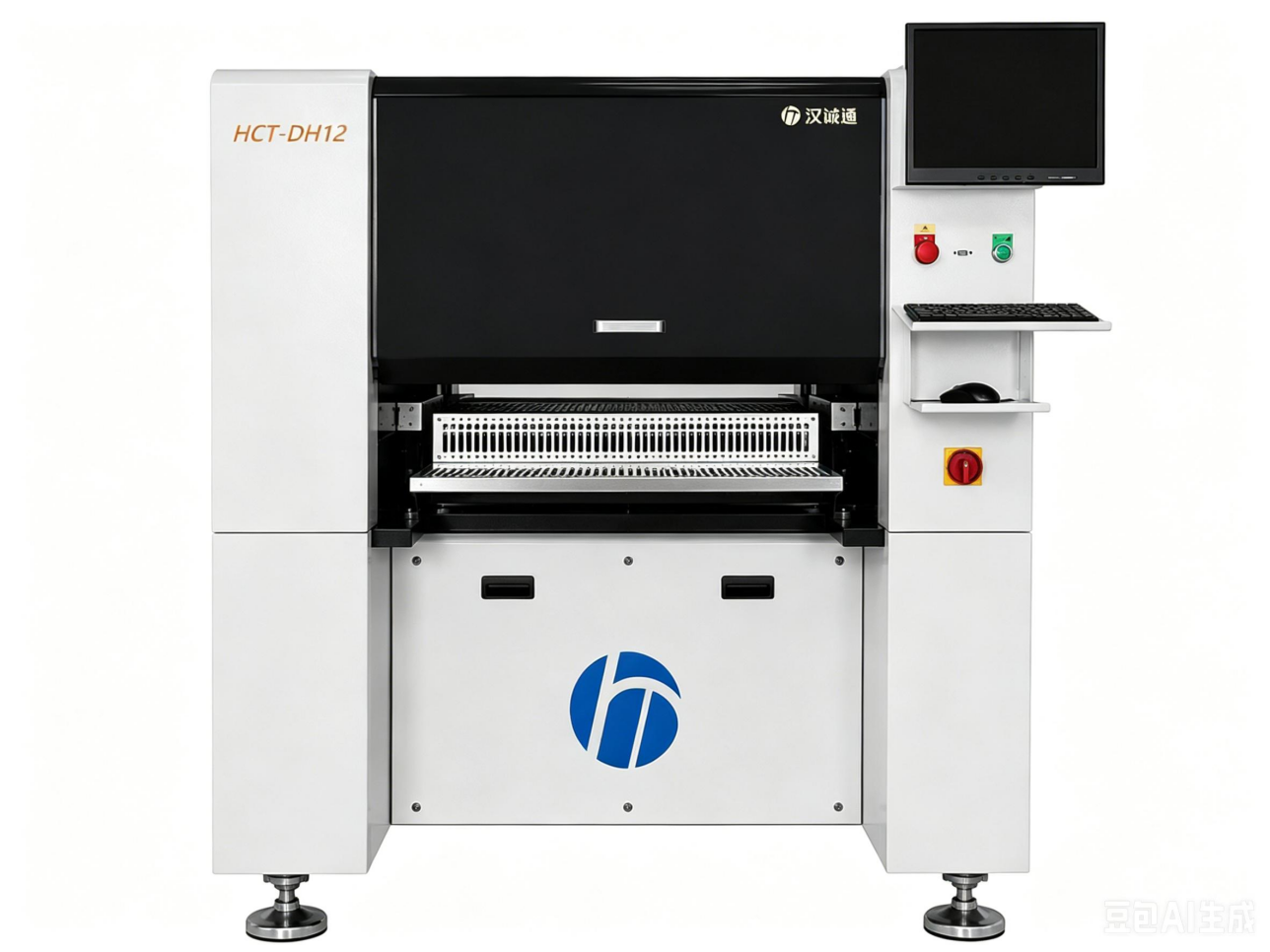

HCT-DH12 Automatic 12 Heads Multi-functional SMT Pick and Place Machine
The HCT-DH12 is a high-performance SMT placement machine independently developed by HCT, equipped with flying vision and MARK positioning system. Supported by magnetic levitation linear motor and 12 spindles, it realizes high precision and flexible mounting for diversified electronic components.
Belongs to category:
General SMT Pick and Place MachineProduct Description
P&P Machine Standard Spare Parts List:
No. Specifications Qty
1. Nozzles *36
2. Hexagon Wrench Tool *1
3. Material Rack *1
Product Features
- Dual Vision Calibration: Equipped with flying vision cameras and one MARK camera, the machine adopts vision alignment plus MARK correction to guarantee consistent mounting precision.
- Magnetic Levitation Drive: Both X and Y axes use magnetic levitation linear motors for smooth movement, high responsiveness and long-term stable precision.
- Wide Component Compatibility: It supports components from 0201 to 16mm with front camera, and optional rear camera covers 0603 to 40mm to meet various production needs.
- Automatic Nozzle Switching: Three groups of nozzle stations enable automatic nozzle replacement, cutting downtime for different parts switching.
- Dual Programming Options: Compatible with vision teach-in and coordinate file import. Combined mechanical and visual positioning simplifies programming work greatly.
- Bidirectional Online Transmission: Supports left-right and right-left PCB conveying, matching different assembly line layouts.
- Outstanding Positioning Precision: Benefiting from dual visual calibration and high-standard linear motor structure, the machine keeps stable precision, lowers mounting deviation and product reject rate.
- Powerful Compatibility: It covers various PCB sizes and component specifications, with optional rear vision and extra feeders to satisfy customized small-batch and diversified orders.
- Stable Independent R&D System: The whole control system including software, electric circuit and motion board is self-developed, ensuring stable operation and convenient after-sales maintenance.
- Flexible Line Adaptation: Bidirectional PCB transmission, adjustable rails and dual programming modes allow easy integration into most existing production assembly lines.
Specification
|
Model |
HCT-DH12 |
|
|
Alignment |
Flying Vision Alignment System |
|
|
Number of Spindles |
12 Spindles x 1 Gantry |
|
|
RatedPlacement Speed |
Vision Alignment |
48,000 CPH (Optimum) |
|
Placement Accuracy |
±0.05mm |
|
|
(Based on the standard chips) |
||
|
Mechanical Precision |
±0.02mm |
|
|
Component Range |
Fly Camera |
0201(inch)~16(mm), (Front Camera Standard) |
|
0603(inch)~40(mm),(Rear Camera Optional) |
||
|
Max Height |
H≤16mm(Standard) |
|
|
Board Dimension(mm) |
Minimum |
50(L) x 50(W) |
|
Maximum |
500(L) x500(W) |
|
|
PCB Thickness |
0.5 - 5.0 |
|
|
Board Handling Method |
Three-section Fixed Track |
|
|
Tape Feeder |
Feeder Type |
Electric Feeder |
|
Feeder Capacity |
48 ( Standard 48 PCS) |
|
|
（Optional 48+48PCS） |
||
|
Optional |
8mm, 12mm, 16mm, 24mm, 32mm |
|
|
Utility |
Power |
AC 220V/240V 50Hz, Single phase |
|
Max2.5KW |
||
|
Air Supply |
0.4-0.6mpa(4-6kgf/cm)100L/min |
|
|
Vacuum Generator for Nozzles |
||
|
Mass |
Approx.2,000kg |
|
|
External Dimension(mm) |
1,560(L) x1,885(D) x 1,480(H) |
|
